Hydraulic Pump & Bracket Oildyne Pump / Metal Reservoir for Mercruiser (R / Mr Alpha One Sterndrive) Engine

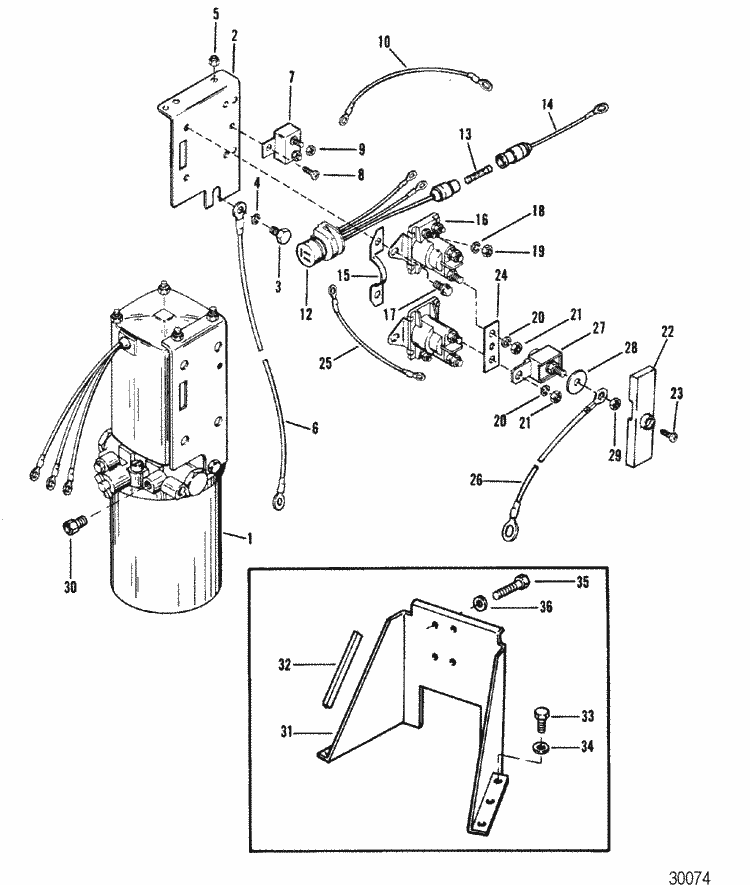

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 14336A17 — PUMP ASSEMBLY, Trim (- required per assembly) | ||
  |
14336A17 - Trim Pump Assembly [ More info ] Unavailable |
|
  |
14336A22 - Trim Pump Assembly [ More info ] Unavailable |
|
  |
14336A28 - Trim Pump [ More info ] Unavailable |
|
  |
865380A02 - Trim Pump [ More info ] Unavailable |
|
  |
865380A05 - Trim Pump [ More info ] Unavailable |
|
  |
865380A15 - Trim Pump [ More info ] Unavailable |
|
  |
|
865380A25 - Trim Pump Assembly [ More info ]
|
  |
|
18-6813 - Trim Motor, Pump and Reservior [ More info ]
|
  |
|
18-6753 - Pump Assembly, 14336A9 [ More info ]
|
  |
|
18-6752 - Trim Pump Assembly Complete, Non Quick Connect, 14336A9 [ More info ]
|
  |
|
18-6747 - Tilt Trim Pump Assembly Complete, Quick Connect [ More info ]
|
  |
|
9C-108SS - Trim Pump Assembly Stainless Steel Bracket, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
9C-108 - Trim Pump Assembly, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
6285 - Trim Pump Assembly Complete [ More info ]
|
  |
|
6275 - Tilt Trim Motor [ More info ]
|
| #1 — 14336A20 — PUMP/MOTOR ASSEMBLY (1 required per assembly) | ||
  |
14336A20 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
14336A25 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
14336A31 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
865380A03 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
|
865380A13 - Pump/Motor Assembly [ More info ]
|
  |
|
18-6769-1 - Tilt Trim Motor [ More info ]
|
  |
|
18-6274 - Tilt Trim Motor [ More info ]
|
| #2 — 90426T — BRACKET, MOUNTING - STARTER SOLENOID (1 required per assembly) | ||
  |
90426T - Bracket [ More info ] Unavailable |
|
  |
|
90426F 1 - Bracket [ More info ] Unavailable |
| #3 — 90285 — SCREW, (.312-18 x .625), MOUNTING BRACKET (1 required per assembly) | ||
  |
|
10-90285 - Screw [ More info ]
|
| #4 — 56720 — WASHER, (.330 x .750 x .060) Stainless Steel, MOUNTING BRACKET SCREW (1 required per assembly) | ||
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #5 — 29488 — NUT, (#10-32), MOUNTING BRACKET TO HYDRAULIC PUMP (2 required per assembly) | ||
  |
|
11-29488 - Nut, (#10-32) [ More info ]
|
  |
|
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ]
|
  |
|
11-8M0204718 - NUT [ More info ]
|
| #6 — 79138A 9 — CABLE ASSEMBLY, (6.00 Feet) Black-Negative (1 required per assembly) | ||
  |
|
84-79138A 9 - Wire Assembly [ More info ]
|
| #7 — 79149 — BREAKER, Circuit - 20 Ampere (1 required per assembly) | ||
  |
|
88-79149 - Circuit Breaker [ More info ]
|
  |
|
888M0085705 - Circuit Breaker [ More info ]
|
| #8 — 807754 — SCREW, (#10-24 x .38), CIRCUIT BREAKER (1 required per assembly) | ||
  |
10-807754 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
108M0113176 - Screw - Priced Individually [ More info ]
|
| #9 — 45076 — NUT, (#10-32) Brass, CIRCUIT BREAKER TERMINAL (2 required per assembly) | ||
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #10 — 87379A 5 — WIRE, COLENOID TO SOLENOID (RED) (1 required per assembly) | ||
  |
|
84-87379A 5 - Wire Assembly, NLA [ More info ] Unavailable |
| #12 — 79147A 3 — HARNESS ASSEMBLY, HYDRAULIC PUMP (1 required per assembly) | ||
  |
|
84-79147A 3 - Harness Assembly [ More info ]
|
| #13 — 79091 — FUSE, 20 Ampere (1 required per assembly) | ||
  |
|
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ]
|
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #14 — 95084A 2 — CABLE ASSEMBLY, FUSE (1 required per assembly) | ||
  |
|
84-95084A 2 - Cable Assembly [ More info ]
|
| #15 — 88075 — RETAINER, HARNESS TO MOUNTING BRACKET (1 required per assembly) | ||
  |
|
88075 - Retainer [ More info ]
|
| #16 — 96158T — SOLENOID, TRIM PUMP (2 required per assembly) | ||
  |
89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable |
|
  |
|
18-5817 - Solenoid 89-96158 [ More info ]
|
  |
|
SW058 - Solenoid [ More info ]
|
  |
|
8M0185622 - Solenoid, Starter or Trim [ More info ]
|
  |
|
89-02718 - Solenoid, 89-96158T [ More info ]
|
| #17 — 41508 — SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO BRACKET (4 required per assembly) | ||
  |
|
10-41508 - Screw [ More info ]
|
| #18 — 26995 — LOCKWASHER, (#8) Stainless Steel, STARTER SOLENOID TERMINAL (4 required per assembly) | ||
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #19 — 26419 — NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (4 required per assembly) | ||
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #20 — 26992 — LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL (4 required per assembly) | ||
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #21 — 94330 — NUT, (.250-20) Brass, STARTER SOLENOID TERMINAL (4 required per assembly) | ||
  |
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|
| #22 — 861680 — INSULATOR, RUBBER - STARTER SOLENOID TERMINAL (1 required per assembly) | ||
  |
|
85-861680 - Insulator [ More info ]
|
| #23 — 48409 — SCREW, (#10-16 x .625) Stainless Steel, SOLENOID INSULATOR (1 required per assembly) | ||
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #24 — 94275 — LINK, SOLENOID TO SOLENOID (1 required per assembly) | ||
  |
|
94275 - Link, Solenoid to Solenoid [ More info ]
|
| #25 — 86322A15 — CABLE ASSEMBLY, (5.50 Inches) Black, SOLENOID TO SLOENOID (1 required per assembly) | ||
  |
|
84-86322A15 - Wire Assembly [ More info ]
|
| #26 — 79139A12 — CABLE ASSEMBLY, Red-Positive (1 required per assembly) | ||
  |
|
84-79139A12 - Wire Assembly [ More info ]
|
| #27 — 79023A10 — FUSE ASSEMBLY, 110 Ampere (1 required per assembly) | ||
  |
88-79023A10 - Fuse, 110 AMP [ More info ] Unavailable |
|
  |
|
88-79023T10 - Fuse, 110 Amp [ More info ]
|
| #28 — 96457 — WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL (1 required per assembly) | ||
  |
|
12-96457 - Phenolic Washer [ More info ]
|
| #29 — 21825 — NUT, (.250-28), FUSE TERMINAL (1 required per assembly) | ||
  |
|
11-21825 - Nut, (1/4x28) [ More info ]
|
| #30 — 89029 — ADAPTOR, HYDRAULIC PUMP (1 required per assembly) | ||
  |
|
22-89029 - Fitting [ More info ]
|
| #31 — 862548A 1 — BRACKET KIT, MOUNTING - HYD. PUMP (FLOOR MOUNTED) (1 required per assembly) | ||
  |
|
862548A 1 - Bracket Kit [ More info ]
|
  |
|
18-6750 - Bracket, 862548A1 [ More info ]
|
  |
|
18-6749 - Bracket, 862548A1 [ More info ]
|
  |
|
6286 - Bracket,862548A1 [ More info ]
|
| #32 — 58491 — CHANNEL, Rubber (4.00 Inches), PUMP MOUNTING BRACKET (2 required per assembly) | ||
  |
|
58491 - Channel Rubber, NLA [ More info ]
|
| #33 — 59784 — SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (6 required per assembly) | ||
  |
|
10-59784 - Screw [ More info ] Unavailable |
| #34 — 29245 — WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW (6 required per assembly) | ||
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #35 — 35386 — SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET (2 required per assembly) | ||
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #36 — 39107 — LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW (2 required per assembly) | ||
  |
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
